Industries such as construction and machinery, mainly used to fix tubular objects such as water or oil pipes.

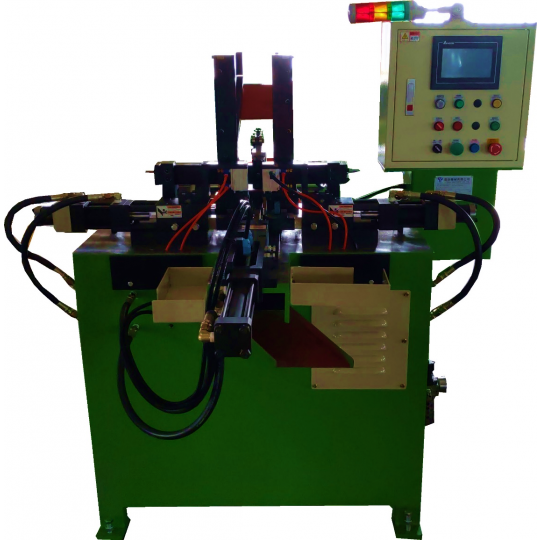

✰ Machine features
✓ Automatic feeding and processing, reducing personnel operations
✓ Adjust the processing size and bending angle
✓ Controlled and adjusted by PLC and HMI
|
Model |
YTF-610N |
|
Diameter Range |
Ø6mm-Ø10m |
|
Bar Length Range |
90-300mm |
|
U Inner Diameter Range |
Ø20-80mm |
|
Speed |
9-14 pcs/min |
|
Motor |
5HP |
|
Rack Capacity |
Ø8mm about 250 pcs |
|
Machine Weight |
900 KG |
|
Machine Size（L×W×H） |
230×160×160 cm |
