Industries such as construction and machinery, mainly used to fix tubular objects such as water or oil pipes.

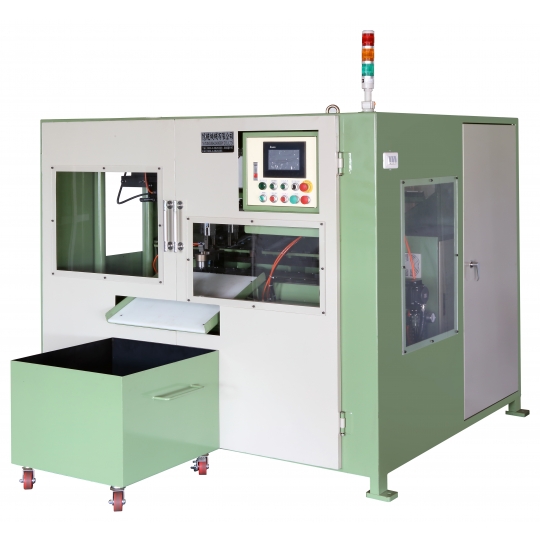

✰ Machine features
✓ Automatic feeding and processing, reducing personnel operations
✓ Adjust the bending size and angle by servo control
✓ Controlled and adjusted by PLC and HMI
Model
| Model |
YTF-509N |
|
Diameter Range |
Ø5mm-9mm |
|
Bar Length Range |
120-1200mm |
|
U Inner Diameter Range |
Ø20mm-120mm |
|
ㄇ Inner Diameter Range |
20mm-180mm |
|
Bending angle |
0-180˚ |
|
Speed |
8-10 pcs/min |
|
Motor |
2HP×1 set |
|
Servo Motor |
1.5KW×1 set、2KW×1 set |
|
Rack Capacity |
Ø8mm about 400 pcs |
|
Machine Weight |
1900 KG |
|
Machine Size（L×W×H） |
220×212×190 cm |
